Littelfuse LFLX0006Z-01 Power Distribution Unit

Capactiy for 27 Mini fuses and 9 ISO280 Micro relays.


Littelfuse LFLX0006Z-01 Power Distribution Unit

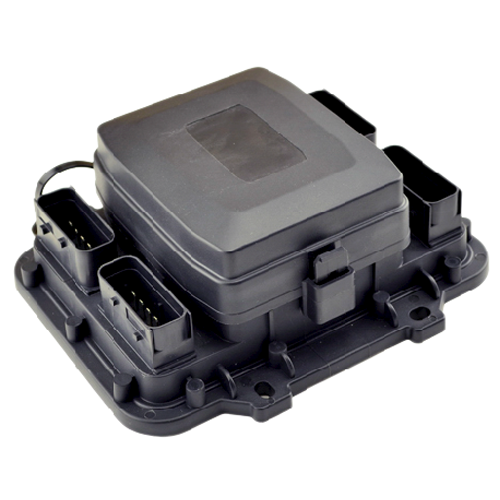

LFLX0006Z-01 pictured.
No components included

Littelfuse LFLX0006Z-01 Power Distribution Unit

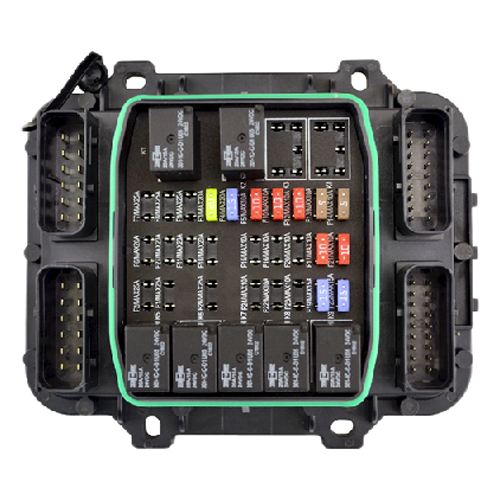

LFLX0006Z-01 pictured.
No components included

Shop with confidence - Fast Delivery.
  • FREE shipping within Australia for orders over AU$150.00.
  • Goods can be exchanged* within 7 days.
  • On-line freight tracking of your parcel.
  • Same day processing of orders received before 2pm AEST.
  • Read more about... Australian orders or International orders.
Our PDF datasheet contains all the detailed specifications of this product.

View other products from our range that can be used with this product.


PART NUMBER
DESCRIPTION

LFLX0006Z-01

PDM 9 MICRO RELAY & 27 MINIFUSE 200A 24VDC
Stock Qty: 0Price: AU$ 380.35 each
Price Each:
AU$ 380.35
Stock Qty: 0
Bulk Price Each:
10+ AU$ 370.60
50+ Request a quote

Order Quantity:

Order in multiples of 1 pcs (eg. 1, 2, 3 pieces).
Learn more about ordering products.


PRODUCT INFORMATION

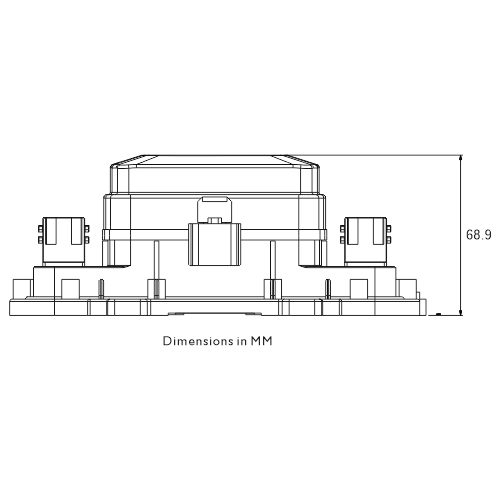

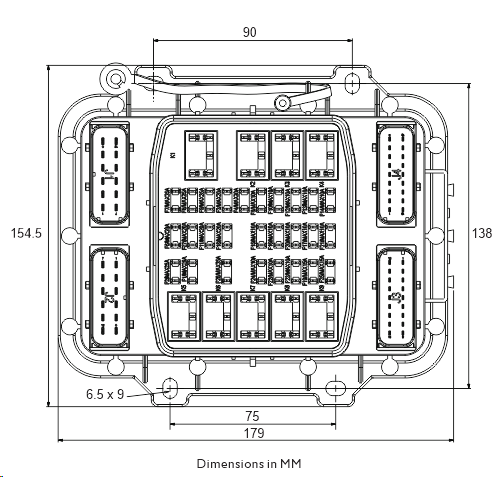

The EPC series is a sealed power distribution module is an internally bussed and connectorized unit suitable for mounting in rugged commercial vehicle applications (IP67/69K). This unit has dense concentration of high power circuits to protect and control complex electrical systems. This unpopulated module provides capacity for 27 x Mini fuses / Mini circuit breakers and 9 x Micro relays. Power inputs and outputs are handled via 4 plug-in Tyco HDSCS connectors. The following is an overview of the pre-configured circuits;

Common Power Feed 1:
  • 15 x fuse circuits
  • 2 x relays (with fuse protection on outputs).
  • 1 x fuse protected output (relay by-pass).
Common Power Feed 2:
  • 5 x fuse circuits
  • 3 x relays (with fuse protection on outputs).
  • 2 x fuse protected outputs (relay by-pass).
Stand-Alone Circuits:
  • 2 x fuse circuits
  • 4 x relay circuits (no fuse protection on outputs).
Our datasheet includes the internal circuit diagram of the unit along with other specifications. All relay coils are connected to common ground with the exception of 1 stand-alone relay. Fuses, relays and Tyco connectors are not included and available for purchase separately. Custom units can be ordered from the factory designed to suit your own requirements. Minimum order quantities apply.

We sell a range of products & accessories to suit this product.

For complete product information, please view our product datasheet

×
