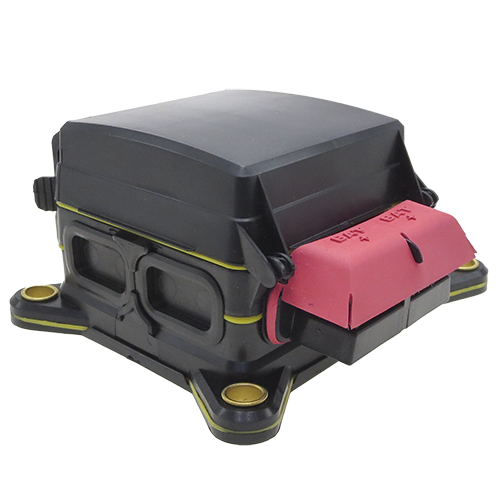

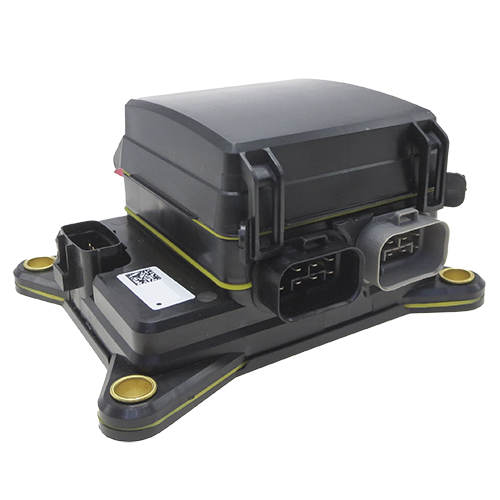

Bussmann 31M-000-2 mVEC Vehicle Electrical Center

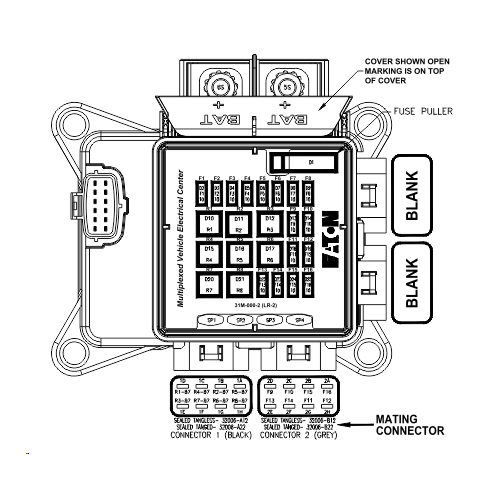

The multiplexed Vehicle Electrical Center (mVEC) is a hardened, weather tight module that can be configured to provide various OEM circuit protection and switching functions with the status and control of each circuit accessible through J1939 CAN open messages. It is an alternative to high current, solid-state power distribution modules and features serviceable components. The mVEC is designed as a slave module, it is controlled by master modules. Power inputs and outputs are handled via 2 linked studs and 2 plug-in connectors. This unit includes a fuse puller and storage for 4 spare fuses. The following is an overview of the pre-configured circuit;

Common Power Feed:

• 8 x fuses.
• 8 x SPST 12V relays (with fuse protection on outputs).

Our datasheet includes the internal circuit diagram of the unit along with other specifications. Fuses & relays are included. Plug-in connectors are not included and available for purchase separately. Custom units can be ordered from the factory designed to suit your specifications. Minimum order quantites apply.

For complete product information, please view our product datasheet.

We sell a range of products & accessories to suit this product.
