GEP PDM-U3FC1 Power Distribution Unit
6 x Auto fuses (12 positions) and 80 open positions for ISO 280 components. M6 mounting clips.
M6 Mounting Clips
Shop with confidence.
- FREE shipping (Australian orders $150.00+).
- Fast order processing.
- Click & Collect, Express or Economy Freight.
- On-line freight tracking of your parcel.
- Goods can be exchanged* within 7 days.
- Australian owned business (est. 1963).
- Learn about Australian or International orders.
Click the Related Products button
to view all products that suit this product.

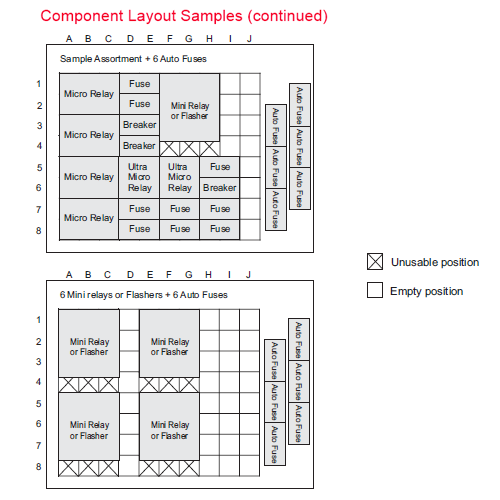

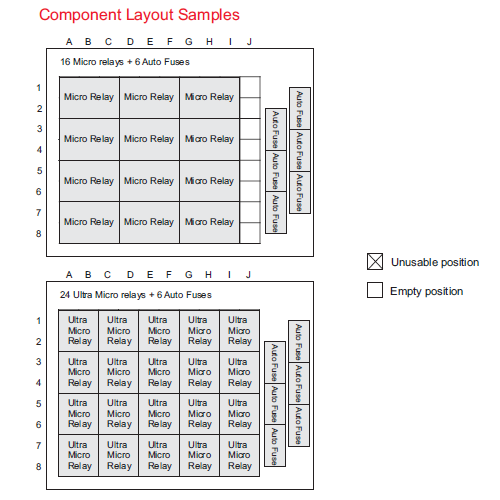

The GEP PDM-U3FC1 Series is a 92 position power distribution module with 12 positions allocated to slots for 6 x Auto Fuses. The remaining 80 positions provide an open plan layout that allows you to install and position your own mixture of ISO 280 style components such as;

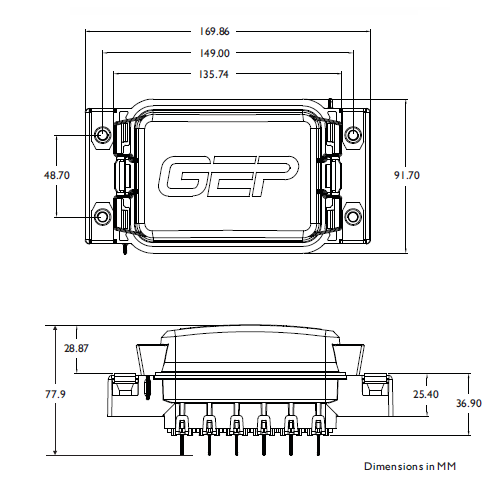

The compact design allows you to mount it anywhere thereby eliminating excessive wiring in harnesses. The module features 4 x 10.5mm moulded holes which are fitted with 4 x M6 threaded clips designed for underside fixing to a panel. Mounting clips can be removed.

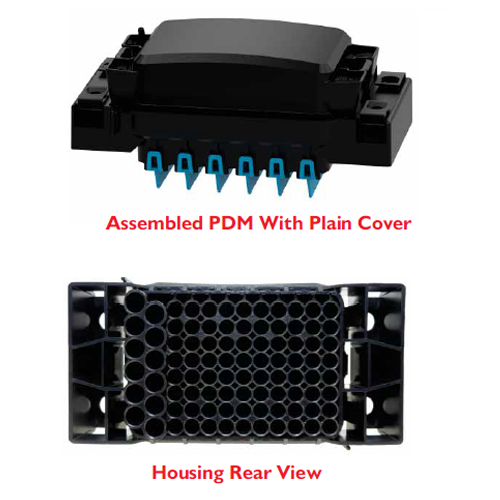

The module is weatherproof when installed with cover and seals (IP66). Cavity plugs can be fitted to seal any unused positions. Terminals, cable seals, cavity plugs, diode key, cover tether & terminal TPA's can all be ordered seperately. Plug-in components such as fuses etc. are not included and also available for order seperately.
- Mini fuses
- Mini blade circuit breakers
- Mini diodes
- Mini resistors
- ISO 280 relays
The compact design allows you to mount it anywhere thereby eliminating excessive wiring in harnesses. The module features 4 x 10.5mm moulded holes which are fitted with 4 x M6 threaded clips designed for underside fixing to a panel. Mounting clips can be removed.
The module is weatherproof when installed with cover and seals (IP66). Cavity plugs can be fitted to seal any unused positions. Terminals, cable seals, cavity plugs, diode key, cover tether & terminal TPA's can all be ordered seperately. Plug-in components such as fuses etc. are not included and also available for order seperately.
For complete product information, please view our product datasheet.
