Littelfuse LFMX0007Z-01 MiniFLEC Power Distribution Unit

Up to 7 Relays & 14 fuses. 12VDC / 24VDC


Littelfuse LFMX0007Z-01 MiniFLEC Power Distribution Unit
LFMX0007Z-01 pictured.
No components included

Littelfuse LFMX0007Z-01 MiniFLEC Power Distribution Unit


LFMX0007Z-01 pictured.
No components included

Shop with confidence - Fast Delivery.
  • FREE shipping within Australia for orders over AU$150.00.
  • Goods can be exchanged* within 7 days.
  • On-line freight tracking of your parcel.
  • Same day processing of orders received before 2pm AEST.
  • Read more about... Australian orders or International orders.
Our PDF datasheet contains all the detailed specifications of this product.

View other products from our range that can be used with this product.


PART NUMBER
DESCRIPTION

LFMX0007Z-01

PDM 7X RELAYS,12X MINI & 2X MJCPS FUSE 150A 32VDC
Stock Qty: 8Price: AU$ 298.39 each
Price Each:
AU$ 298.39
Stock Qty: 8
Bulk Price Each:
10+ AU$ 290.74
50+ Request a quote

Order Quantity:

Order in multiples of 1 pcs (eg. 1, 2, 3 pieces).
Learn more about ordering products.


PRODUCT INFORMATION

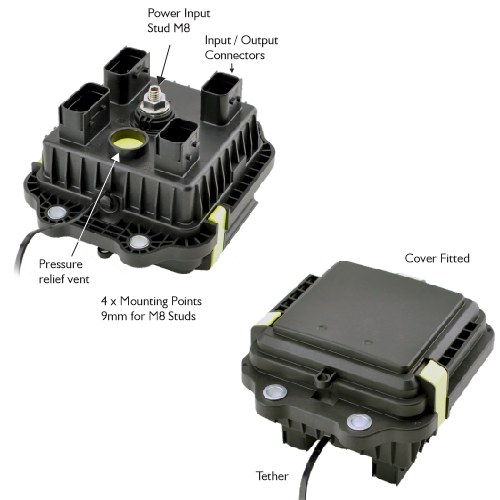

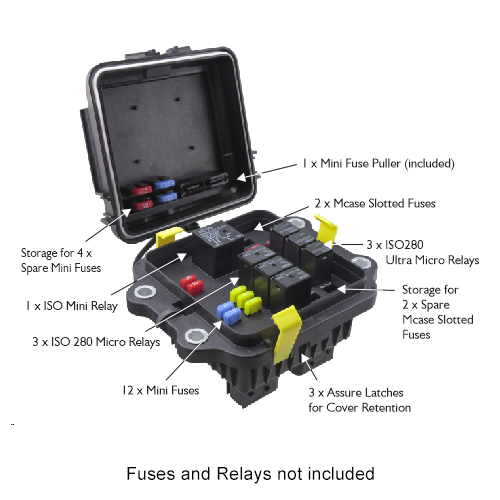

The MiniFLEC is a compact, front access, internally bussed, connectorized, sealed power distribution module (IP67/69K) suitable for mounting in rugged commercial vehicle applications. This unpopulated module features capacity for 12 x Mini fuses, 2 x MCase+ slotted fuses and 7 x relays. Power inputs and outputs are handled via 1 stud and 4 plug-in Tyco HDSCS connectors. This unit includes a fuse puller and storage for 4 spare fuses. The following is an overview of the pre-configured circuits;

Common Power Feed 1:
  • 3 x fuse circuits
  • 7 x relays (with fuse protection on outputs).
Stand-Alone Circuits:
  • 3 x fuse circuits
Our datasheet includes the internal circuit diagram of the unit along with other specifications. Fuses, relays and Tyco connectors are not included and available for purchase separately. Custom units can be ordered from the factory designed to suit your own requirements. Minimum order quantities apply.
